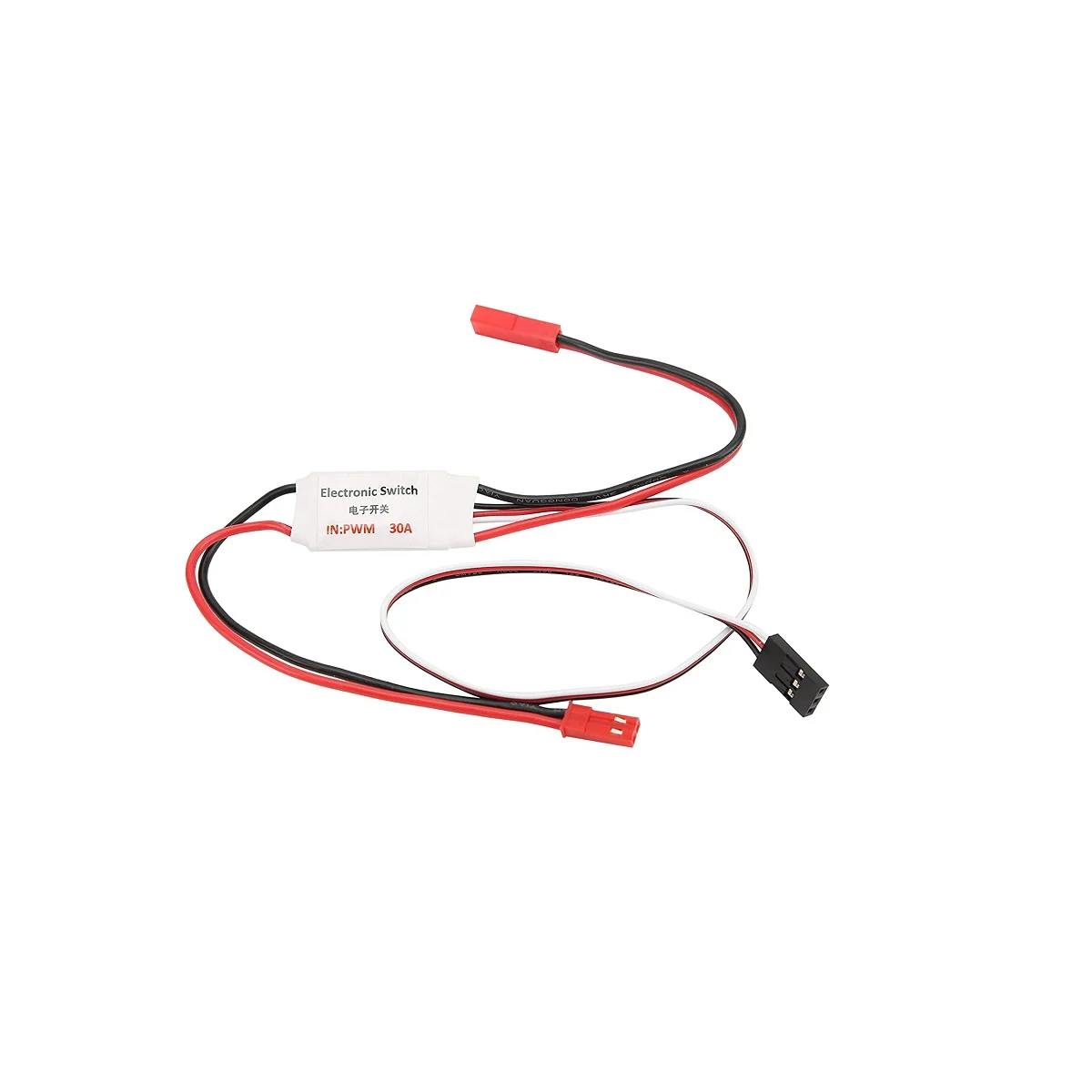

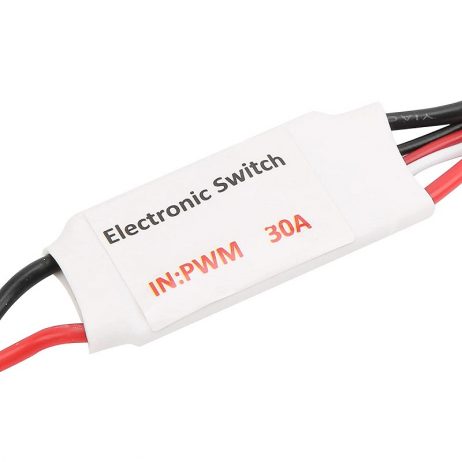

30A 1-6s Electronic Switch PWM 3.7-27V Input

Original price was: ₹452.00.Current price is: ₹360.00. Incl. GST

This module is a nice little relay switch controlled by a spare auxiliary channel on your receiver. Ideal for switching lights, sound, and any other auxiliary electrical items. When PWM duty is more than 1500us, the switch will turn on; when PWM duty is less than 1400us, the switch will turn off.

11 Items sold in last 3 minutes

Add to wishlist

13 People watching this product now!

SKU: ARS-A-202 Category: Drone Parts

Description
Additional information

Description

Support High Voltage (HV) Receivers
Input voltage: 3.7V-27V
Max current: 30A
18AWG silicone cable
JST Plug
Cable length 20cm
Weight: 11g – With LED indicator lamp

Additional information

Max Current (A)	30a
Allowed Wire Size (AWG):	18
Plug Type	JST
Cable Length (cm)	20
