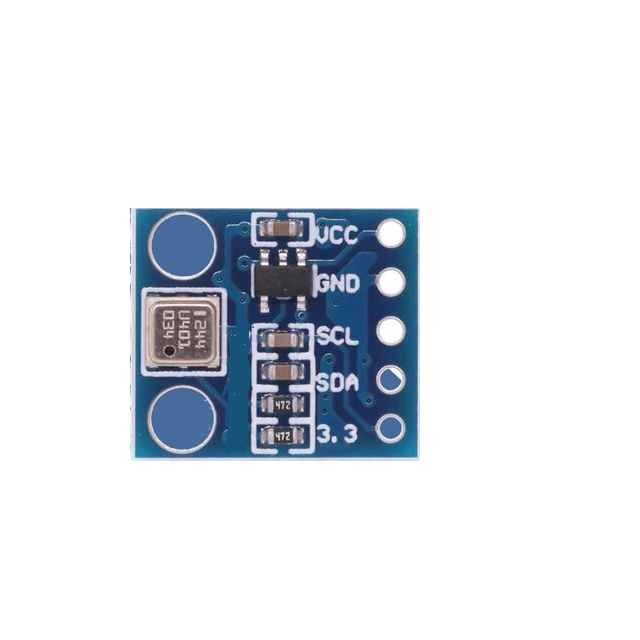

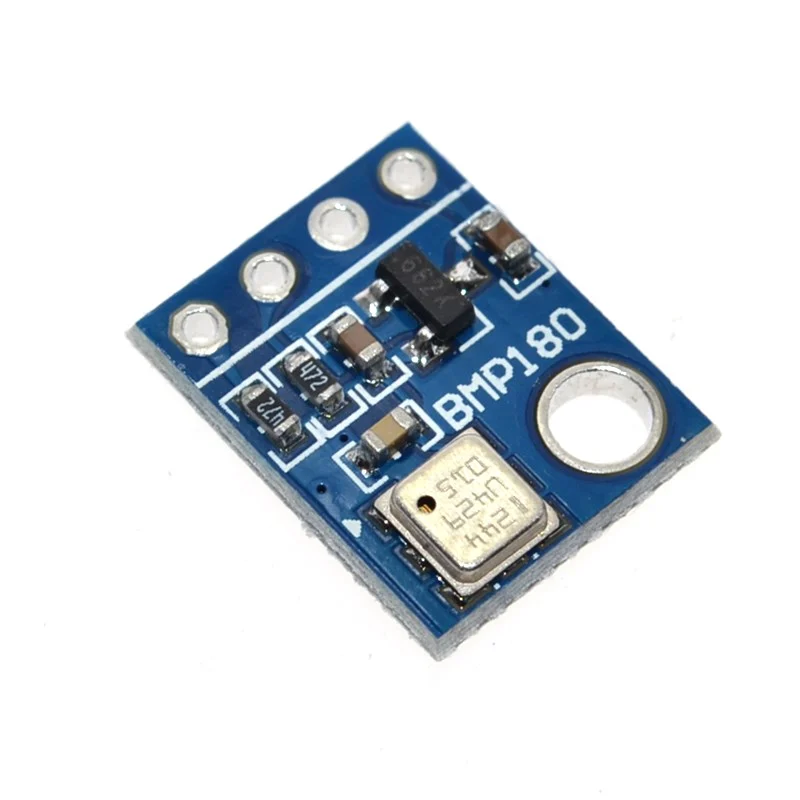

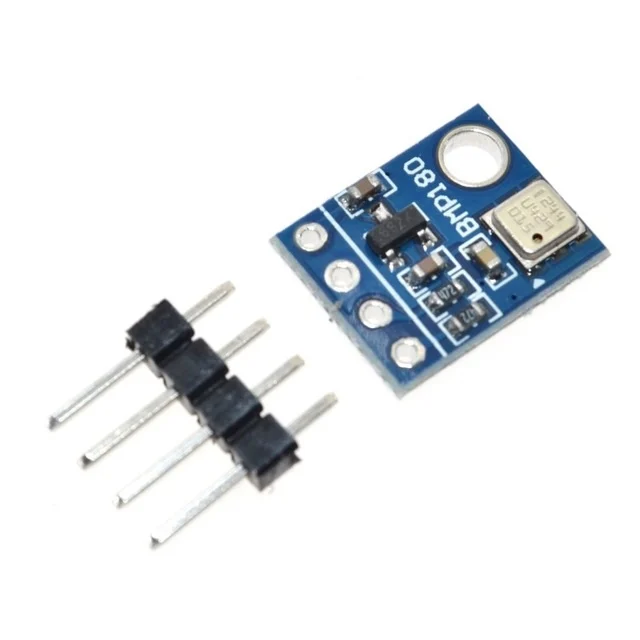

BMP 180
The device will operate at the only 0.3uA meaning low current draw for battery-powered applications. The BMP180 comes fully calibrated and ready to use. As the device operates over I2C we’ve added optional I2C pull-ups that can be enabled using the PU (pull up) jumper on the board for your convenience and ease during breadboarding.
Using I2C, the device provides pressure and temperature as 16bit values, which are used along with calibration data within the device are used to provide a temperature compensated altitude calculation.
BMP180 Digital Barometric Sensor Module compatible with Arduino will Measure the absolute pressure of the environment using a digital barometer such as this has some interesting applications.
- 1.8V to 3.6V Supply Voltage.
- I2C interface.
- Fully calibrated.
- Very low noise – up to 0.02hPa (17cm)
- Small and easy to use.
| Input Supply Voltage (VDC) |
1.8 ~ 3.6 |
|---|---|
| Power Consumption |
0.5uA at 1Hz |
| Max I2C Speed |
3.5Mhz |
| Pressure Range |
300hPa to 1100hPa (+9000m to -500m) |
