JOYSTICK MODULE

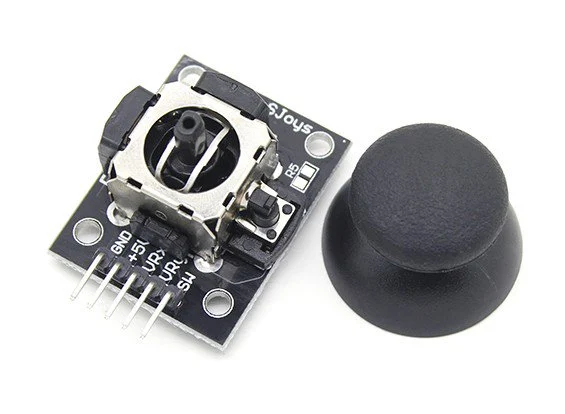

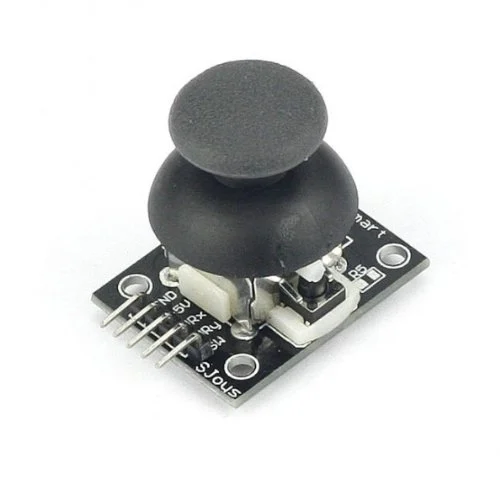

This is PS2 Joystick Module Breakout Sensor very similar to the ‘analog’ joysticks on PS2 (PlayStation 2) controllers. Directional movements are simply two potentiometers – one for each axis. Pots are ~10k each. This joystick also has a select button that is actuated when the joystick is press down.
With the help of this Joystick Module, you can measure position coordinates on the X and Y axis by moving the “hat”. It also contains a switch that is press-able by pushing the “hat”.It also contains a switch that is press-able by pushing the “hat” down. Similar to the XBOX controller.
- 2.54mm pin interface leads
- Long service life and stable performance
- Standard interface and electronic building blocks
- Widely use in Arduino DIY projects
- Cross rocker as a two-way 10K resistor, with the rocker in a different direction.1.As square wave signal generator which generates a square wave signal
2. To provide a signal to the stepping motor driver
3. Adjustable pulse generation for chip use
4. Produce variable pulse signal, the control-related circuit (PWM dimming, speed)
Module Description:
Frequency is divided into three ranges:
1.XXX (no decimal point):the smallest unit is 1Hz,the range 1Hz-999Hz
2.XX.X (decimal point in ten): The minimum unit is 0.1Khz; the range of 0.1KHz-99.9KHz
3.X.X.X.(there is three decimal point): the smallest unit is 1Khz; the range 1KHz-150KHz
| PCB Size (mm) |
34 X 32 |
|---|---|
| Shipping Weight |
0.015 kg |
| Shipping Dimensions |
6 × 5 × 4 cm |
