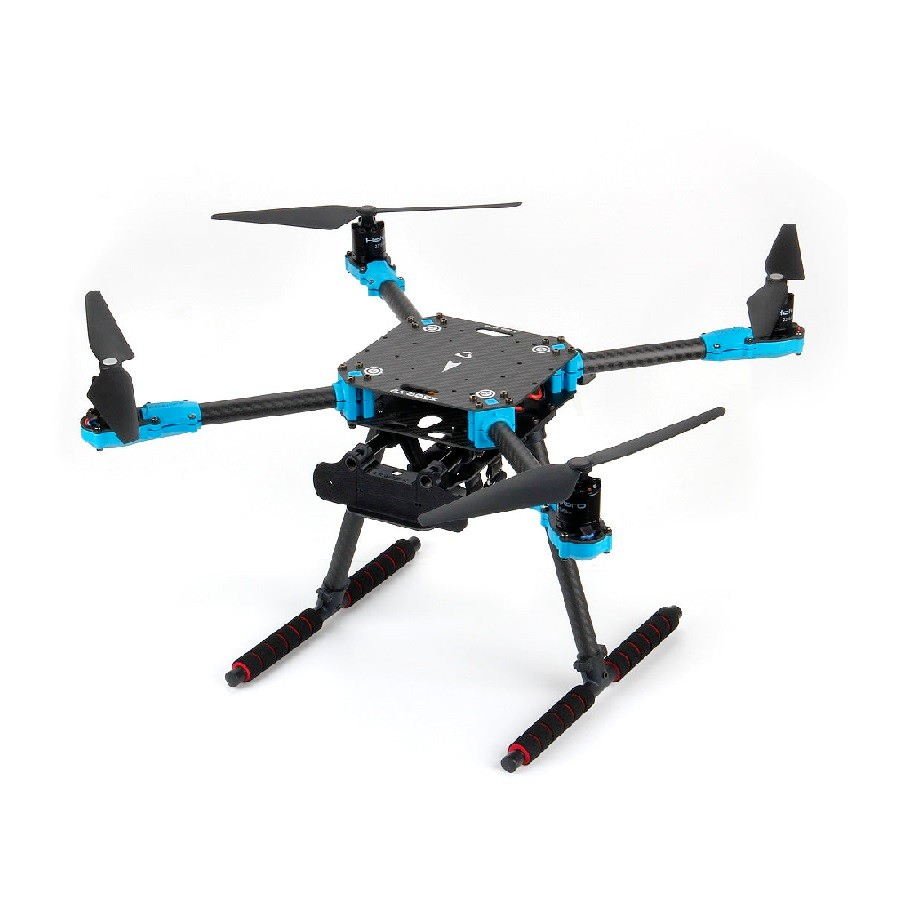

Holybro X500 V2 Kits (Included Motor, Prop and ESC)

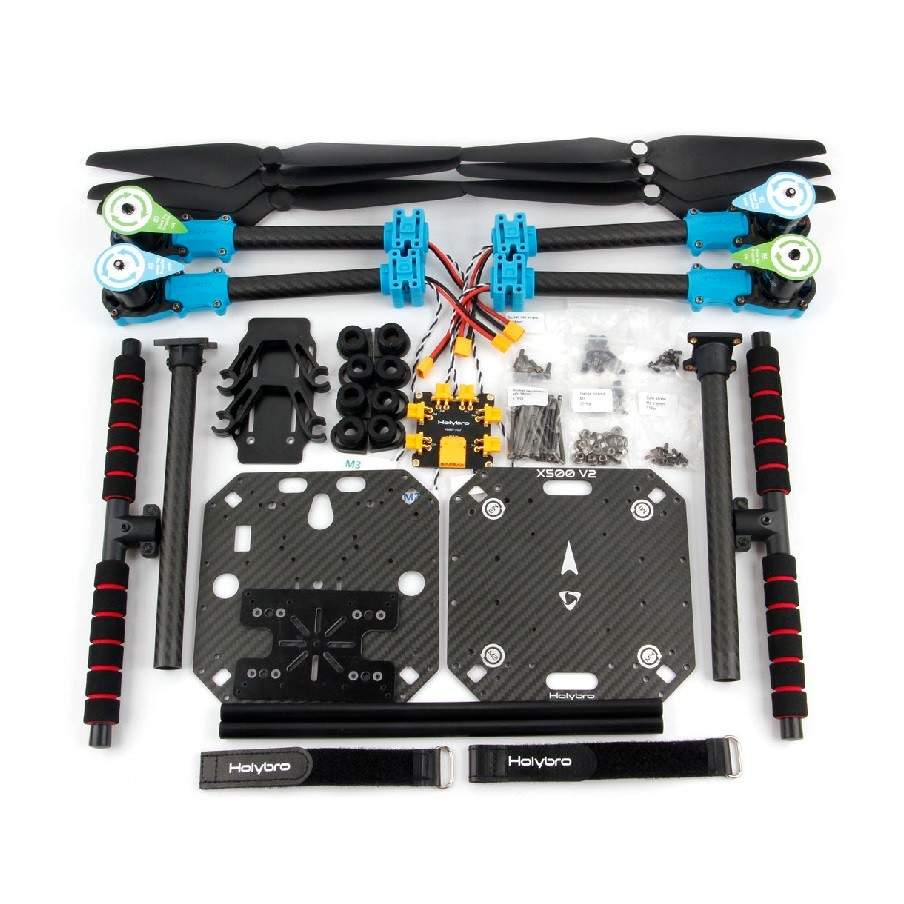

The X500 V2 ARF (Almost Ready-to-Fly) Kit is an economical, lightweight, and sturdy carbon fiber drone kit that is simple to assemble in under 15 minutes. It includes the X500 V2 Frame Kit with motors, ESCs, power distribution boards, and propellers already installed. This kit is fully compatible with a range of flight controllers, including the Holybro Pixhawk series, Durandal, Pix32 V5, and more, featuring several enhancements over the previous model.

The X500 V2 Frame Kit is crafted from full carbon fiber twill, with carbon fiber tube arms supported by newly designed fiber-reinforced nylon connectors that feature convenient notches on both motor and body sides for an easier and more straightforward installation. The landing gear is made of 16mm and 10mm diameter carbon fiber tubes with thickened and strengthened connectors.

The gap between the top and bottom carbon fiber plates has been widened for better access. The platform board now includes mounting holes for GPS and popular companion computers like the Raspberry Pi 4 and Jetson Nano. The adjustable battery mounting board has been expanded to accommodate larger batteries for extended flight times. The rail mounting system is prepared to support a variety of camera mounts and gimbals for different applications. Additionally, there is an optional mount available for various depth cameras, such as the Intel RealSense series and Structure Core Depth Cameras (sold separately). All necessary tools for installation are provided in the box.
